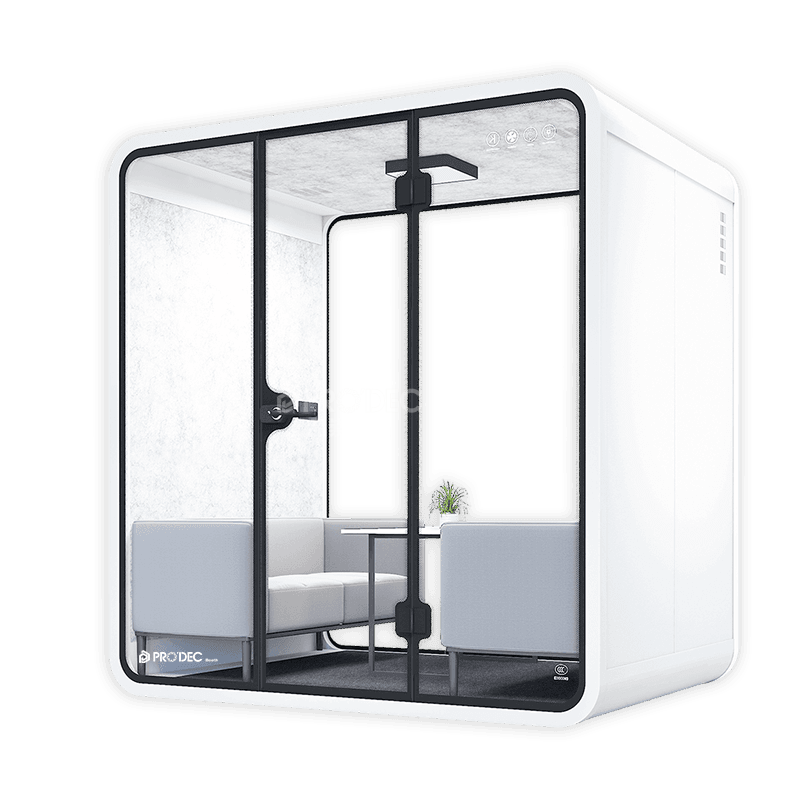

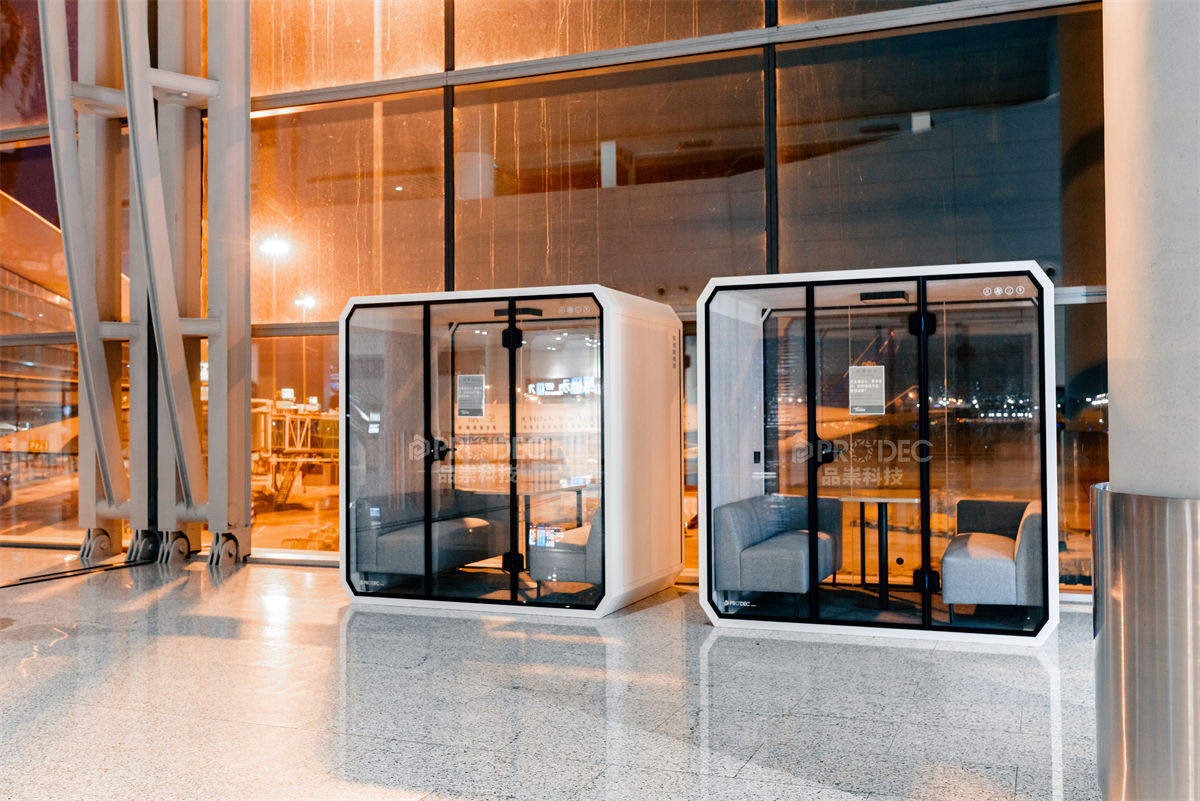

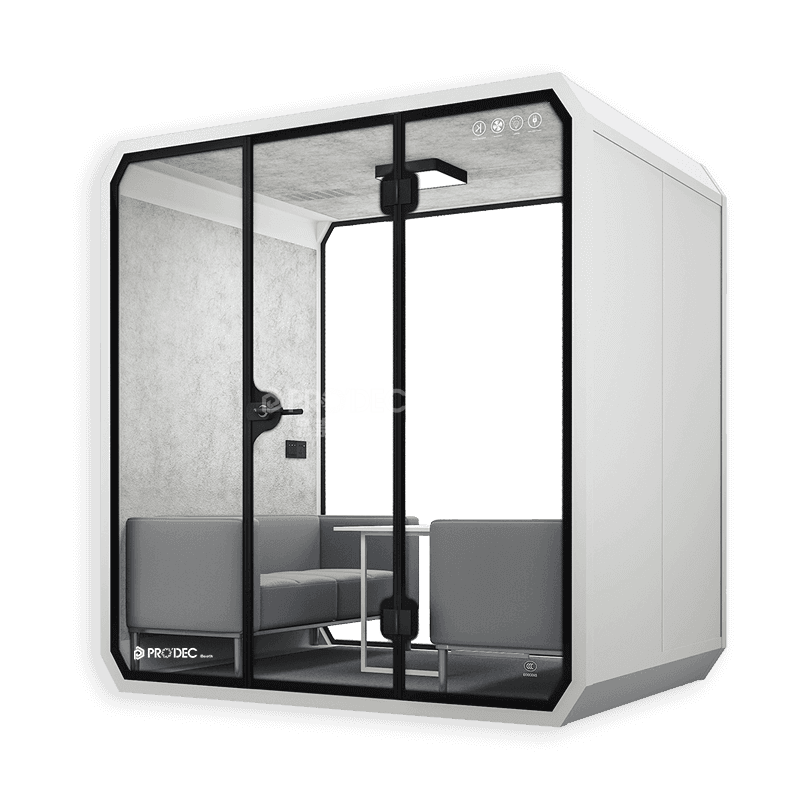

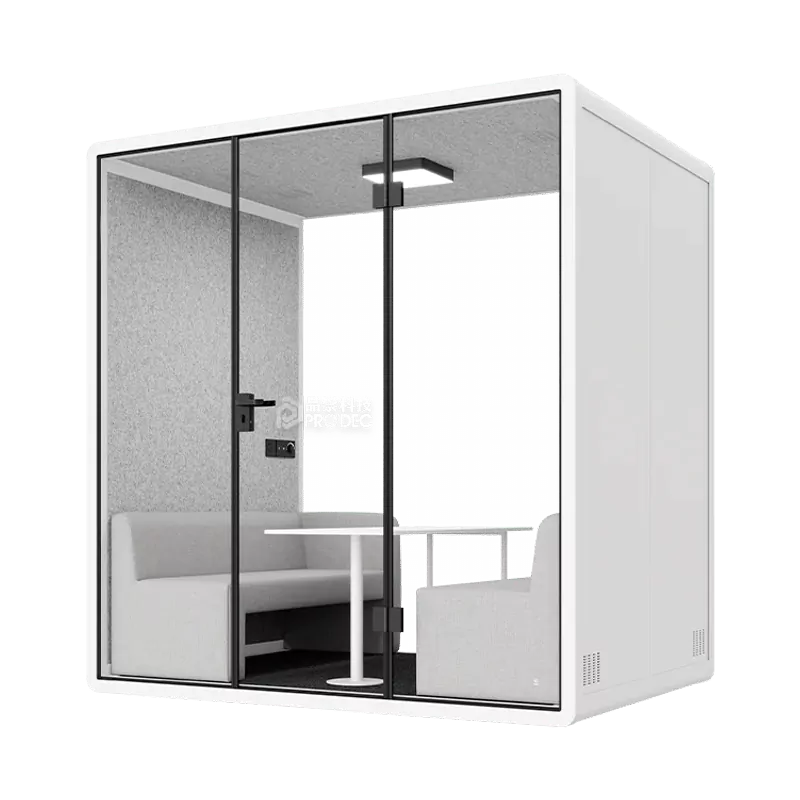

灵活可移动的隔音舱,犹如伟大的集装箱,在限定的尺寸内发挥出强大的空间创造力。外框采用6061氟碳灰加强型铝材,
墙体为双层铝蜂窝板及双面隔音玻璃,内饰配聚酯纤维吸音板。全铝的材料设计使其达到防火要求,安全稳定。
阻燃的聚酯纤维吸音板以及尼龙地毯,使其达到声学环境指标。隔音舱无色差粉末喷涂的表面处理,外框和板材都是铝材,
除了防火等优点之外,外框和板材可以做到同样的无色差的表面处理。
  • 工作

  • 会议

  • 播音

  • 电话

  • 琴房

  • 学习

  • 架子鼓

  • 萨克斯

  • 小提琴

  • 烟室

  • 办公环境现状调研

    Investigation on the current situation of office environment

    超过50%的人在开放式办公室里很难集中精力 ----研究来源:悉尼大学

    Over 50% of people have a hard time concentrating in open-plan offices
    -Research source: University of Sydney

    在小小的分心之后需要20分钟才能重新集中注意力 -----资料来源:加州大学

    It takes20 minto regain your focus after a small distraction
    -Source: University of California

    80%的会议在1-4人之间召开,工作效率高 -----研究来源:Rapal Study, 2018

    80% of meetings are held between 1-4 people, which is efficient
    -Source: Rapal Study, 2018

    在开放式办公室工作效率会降低15% -----研究来源:BBC资本

    You are 15% less productive working in an open-plan office
    -Source: BBC Capital

  • 解决开放式办公室的噪音及私隐问题

    Solve the noise and privacy problems in open offices

  • 时尚外观点缀办公环境

    Stylish appearance embellishes the office environment

  • 多种可搭配选项满足个性化需求。 颜色、家具、硬件设施

    A variety of matching options to meet individual needs. Color, furniture, hardware facilities

  • 比单独建立办公室更省时、成本、空间

    Save time, cost and space than setting up an office alone

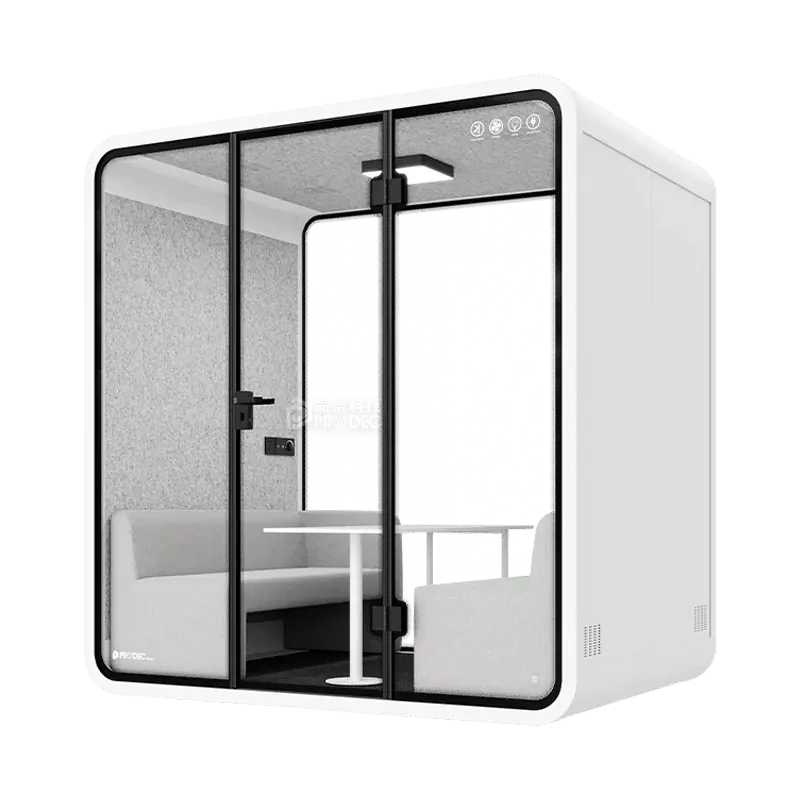

  • extra large 六人

    团队办公隔音舱

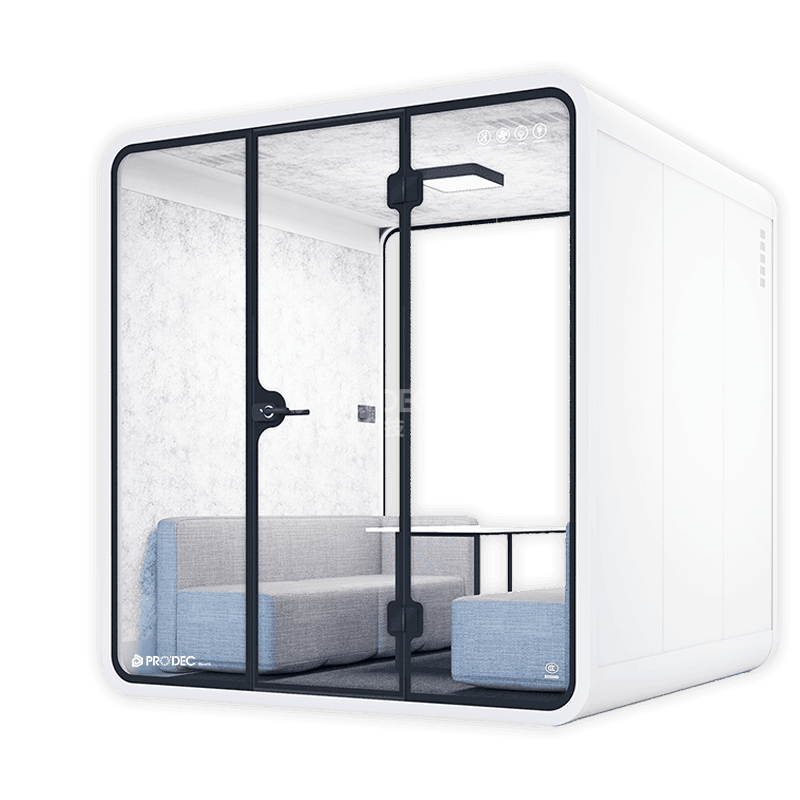

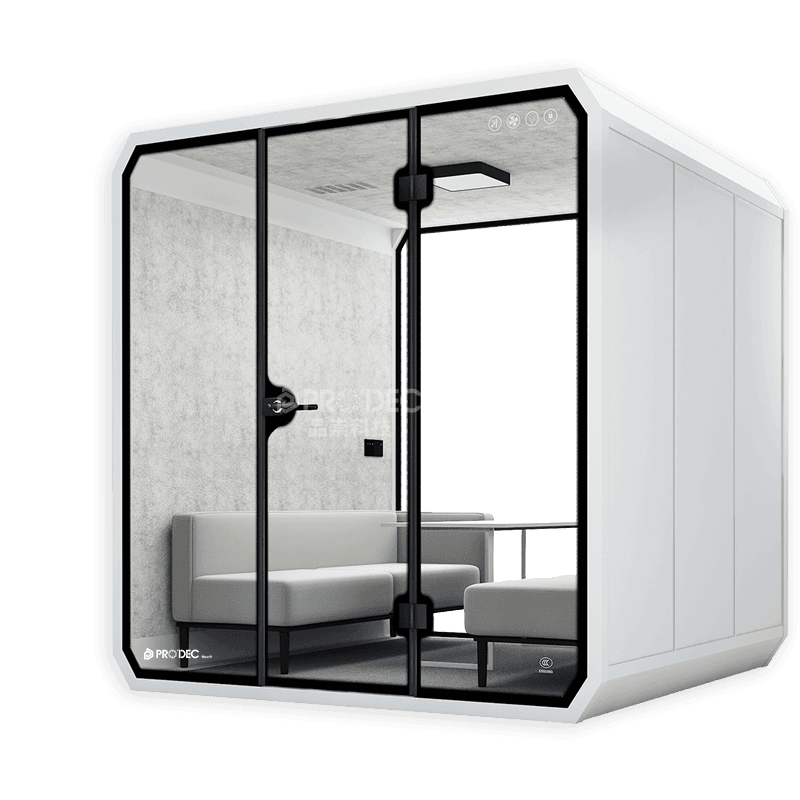

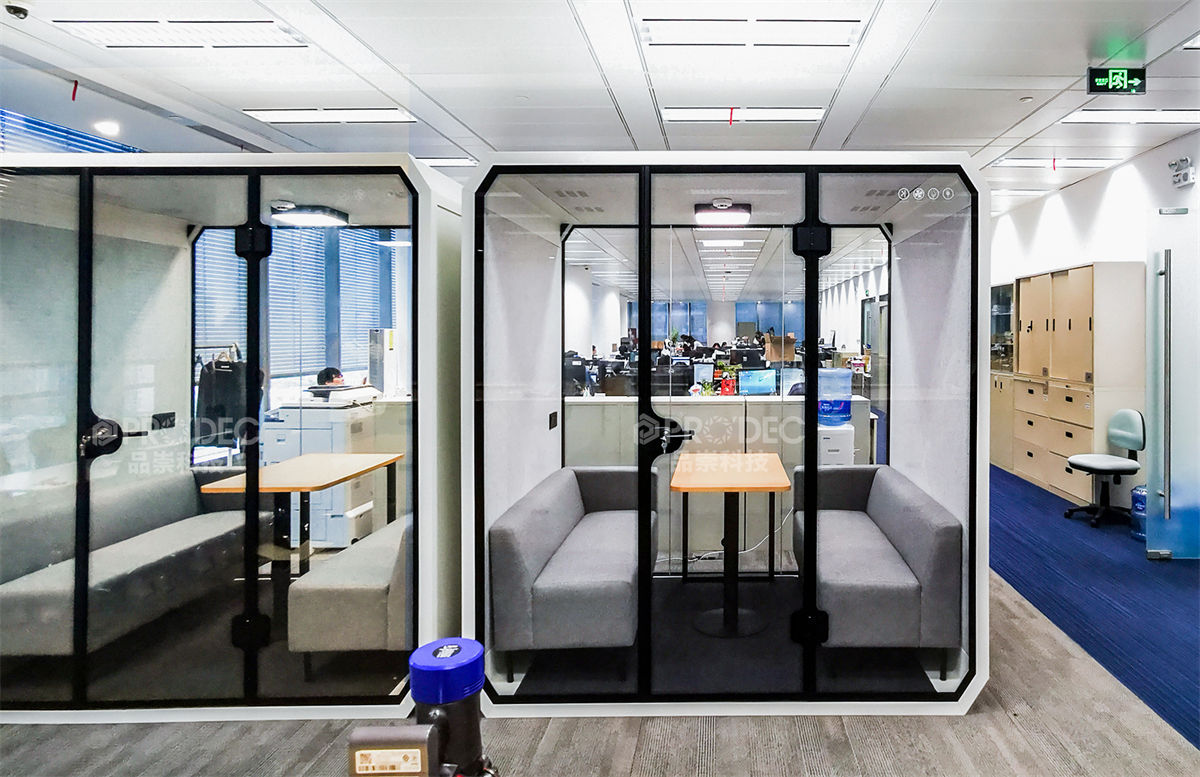

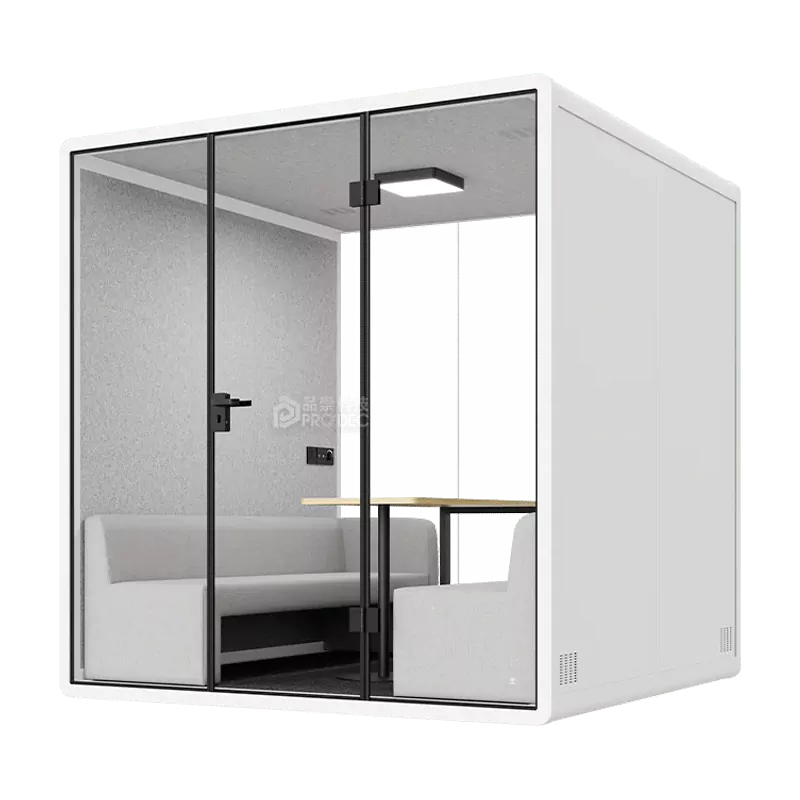

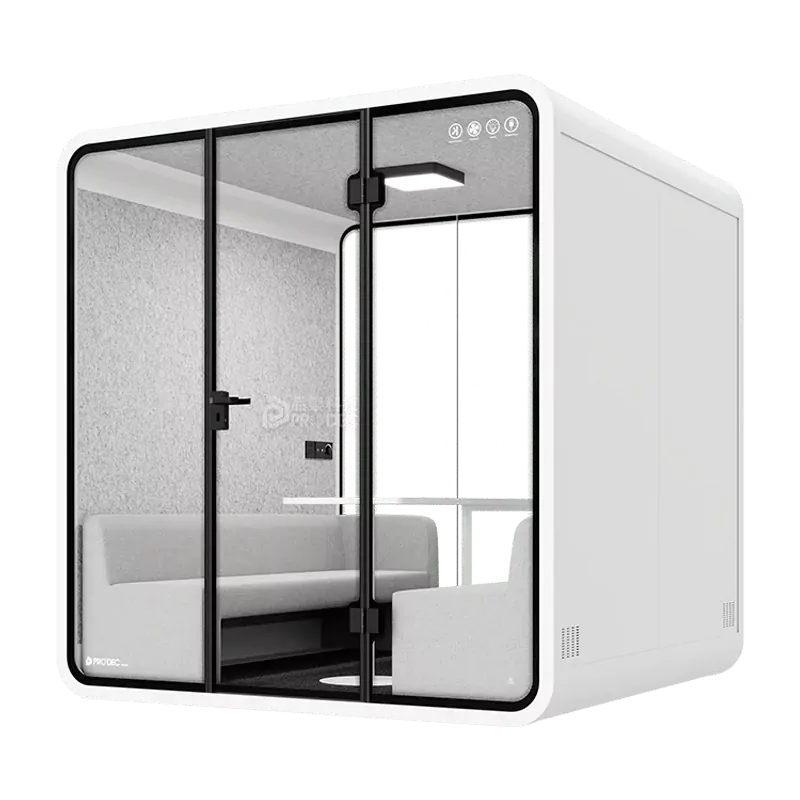

    large 四人

    会议接洽静音舱

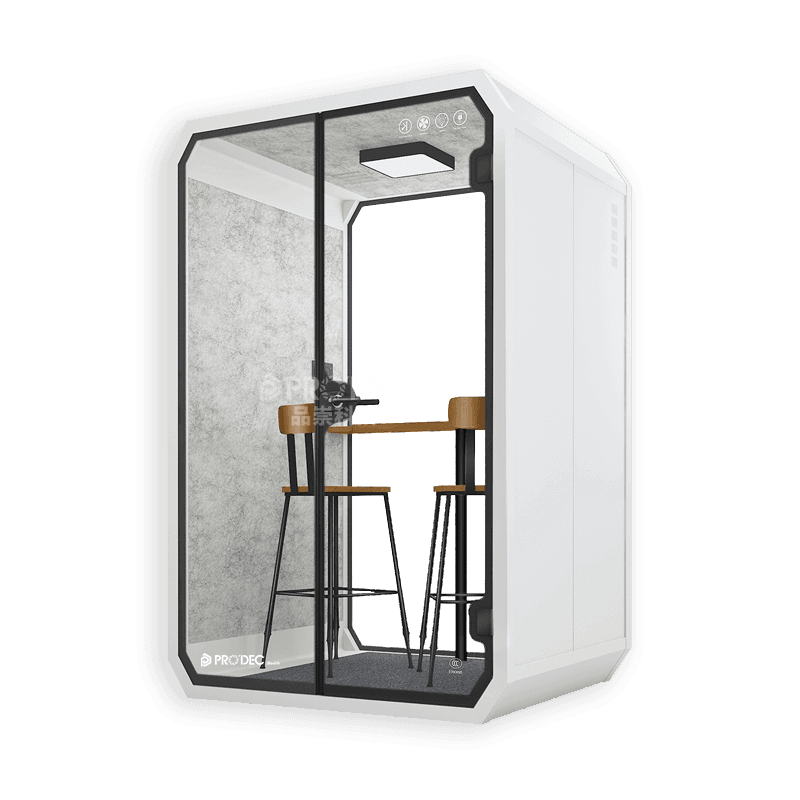

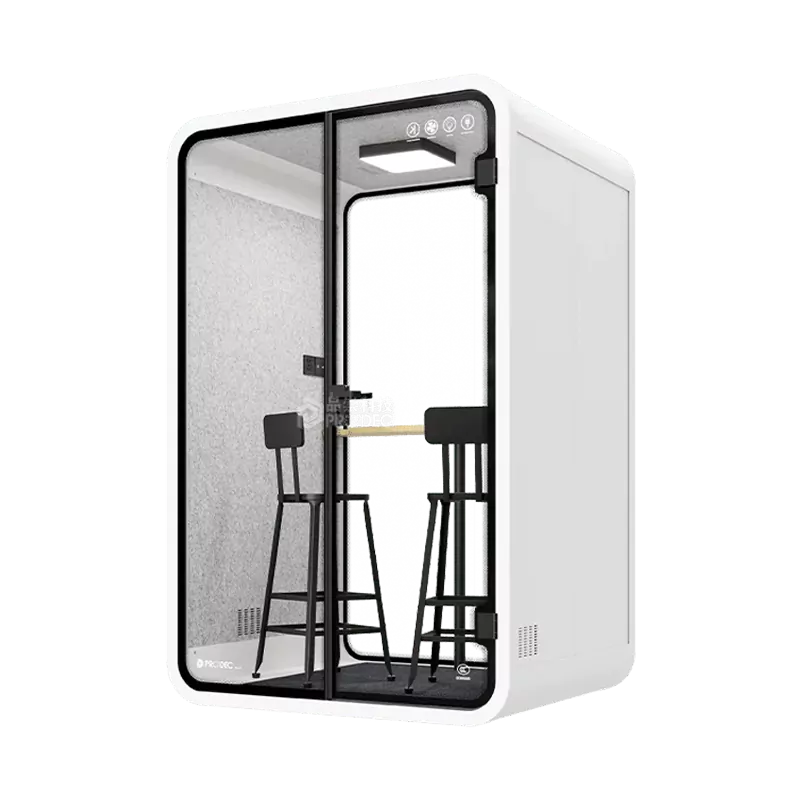

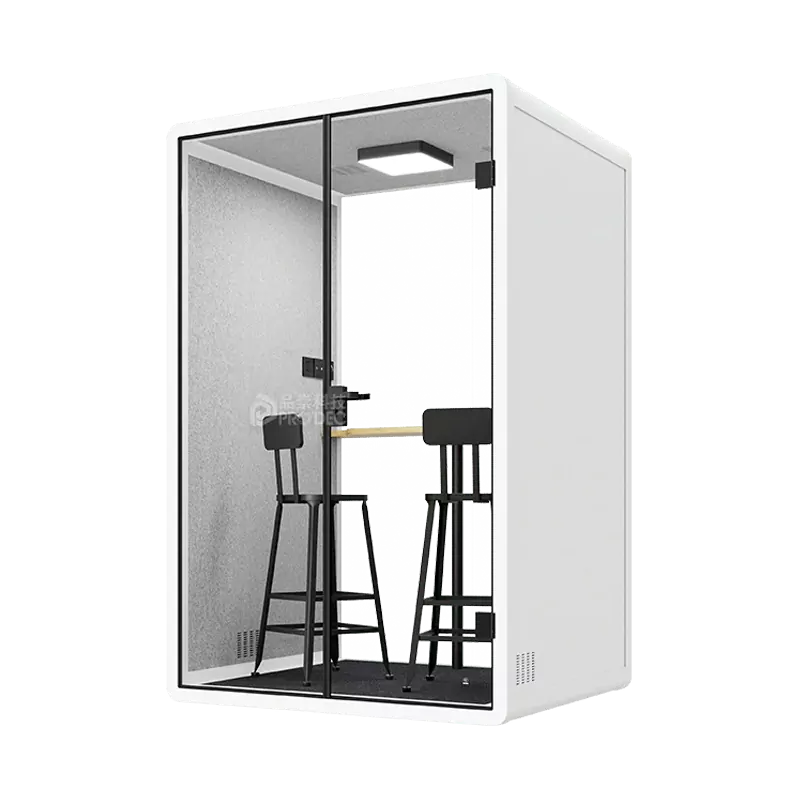

    Middle 双人

    临时办公舱

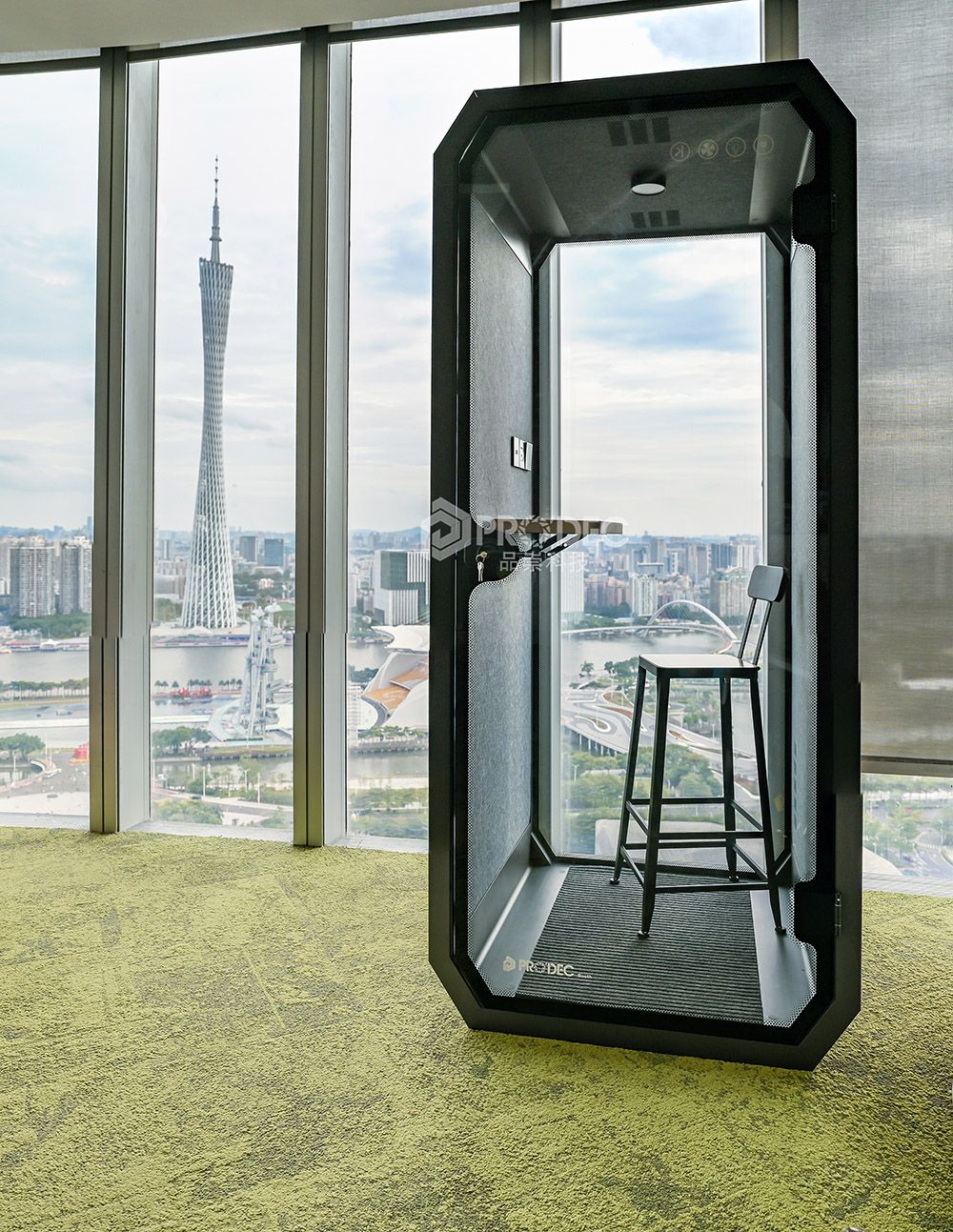

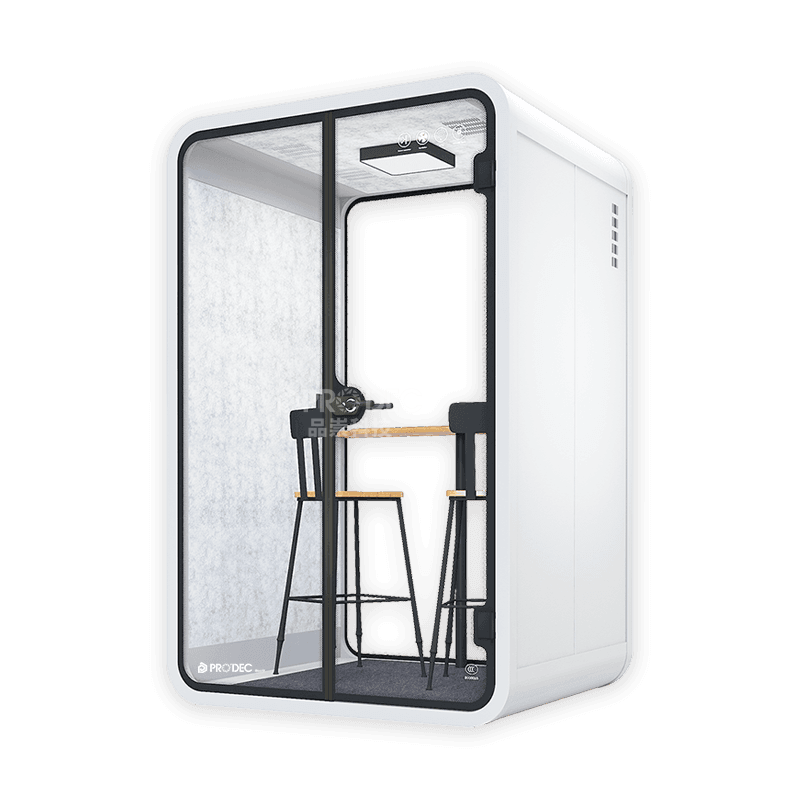

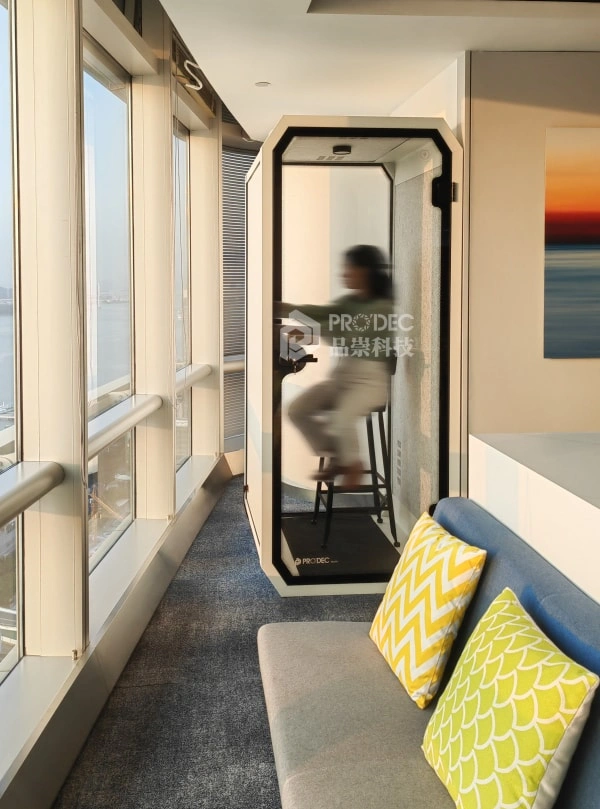

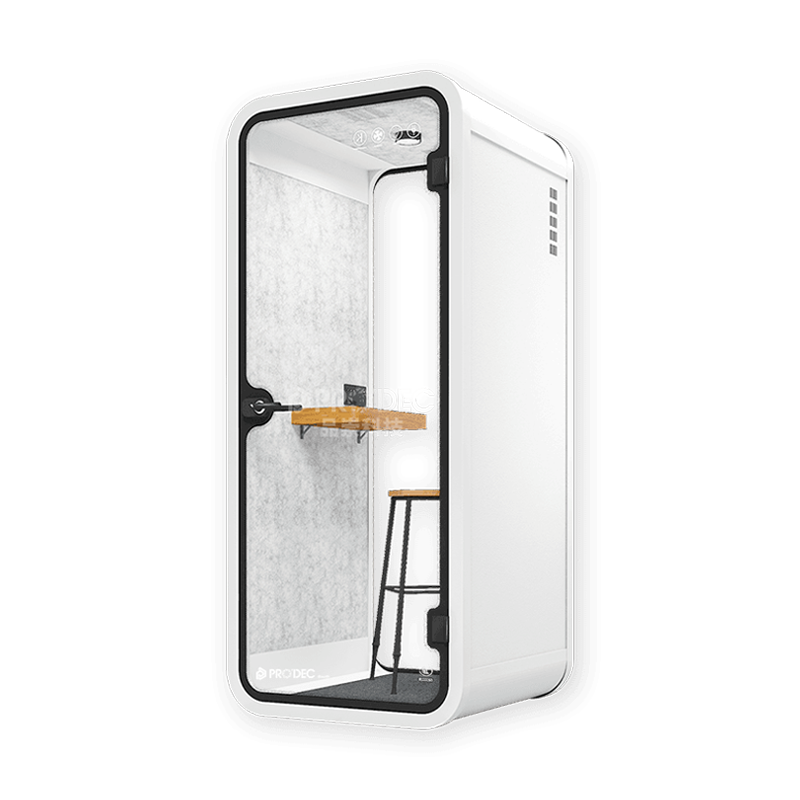

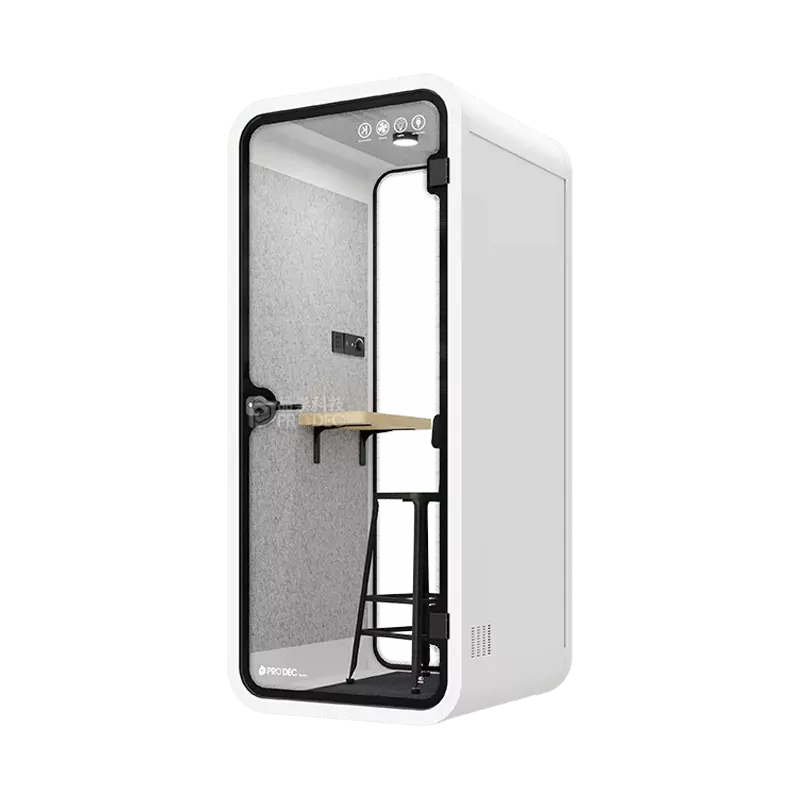

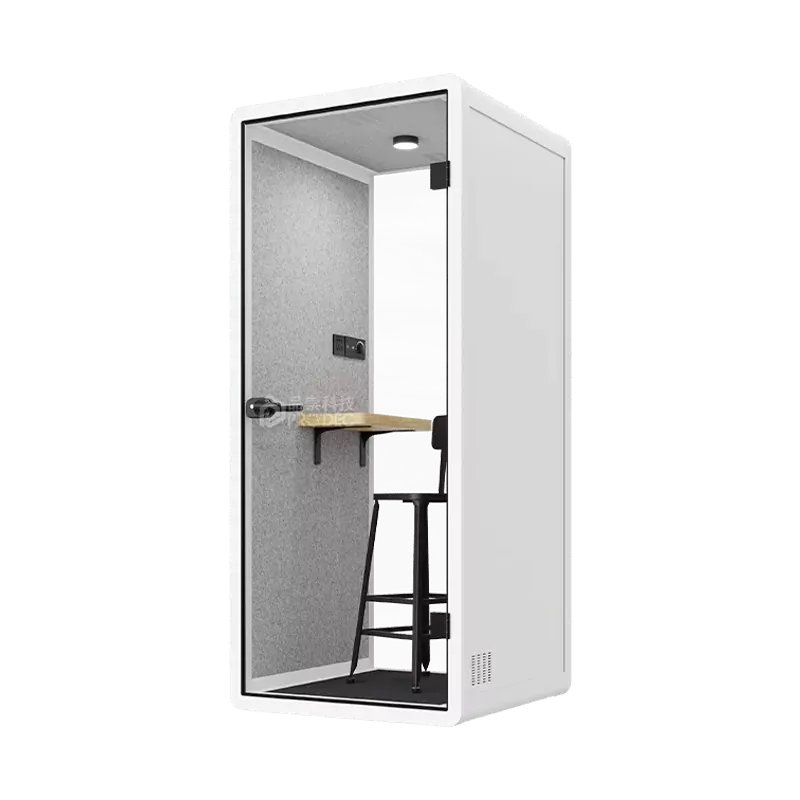

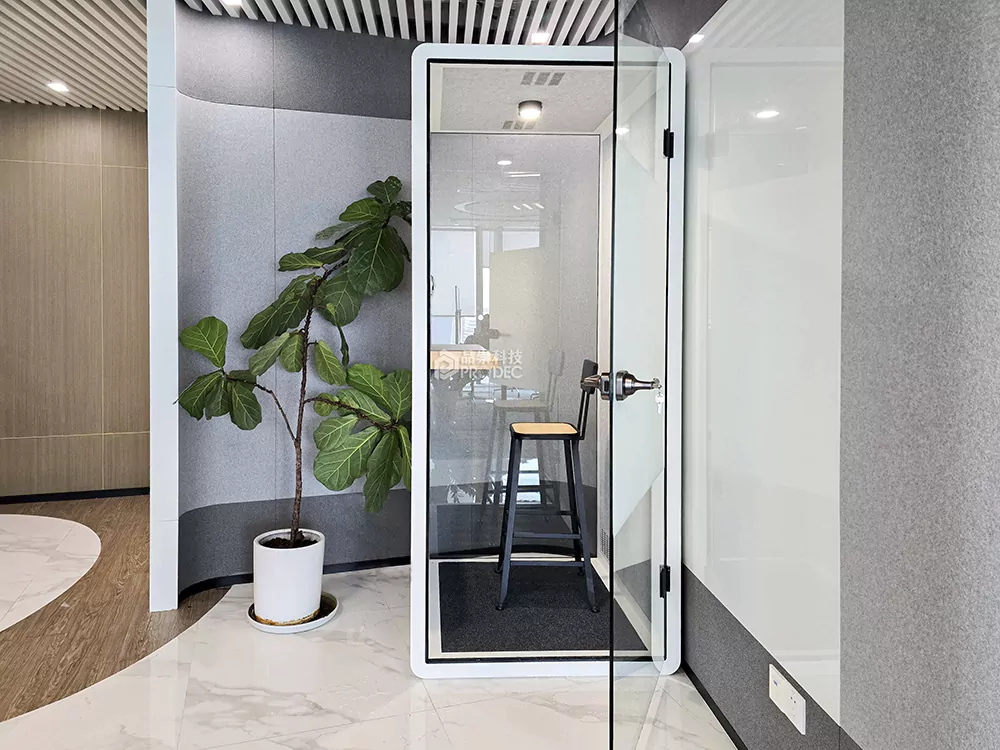

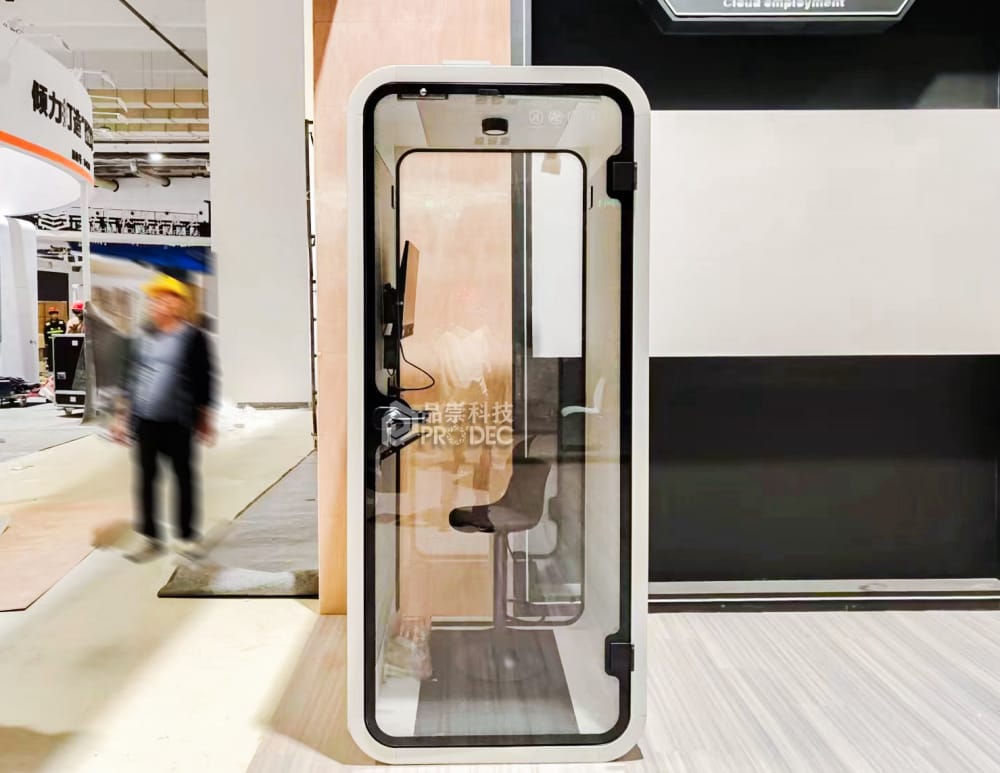

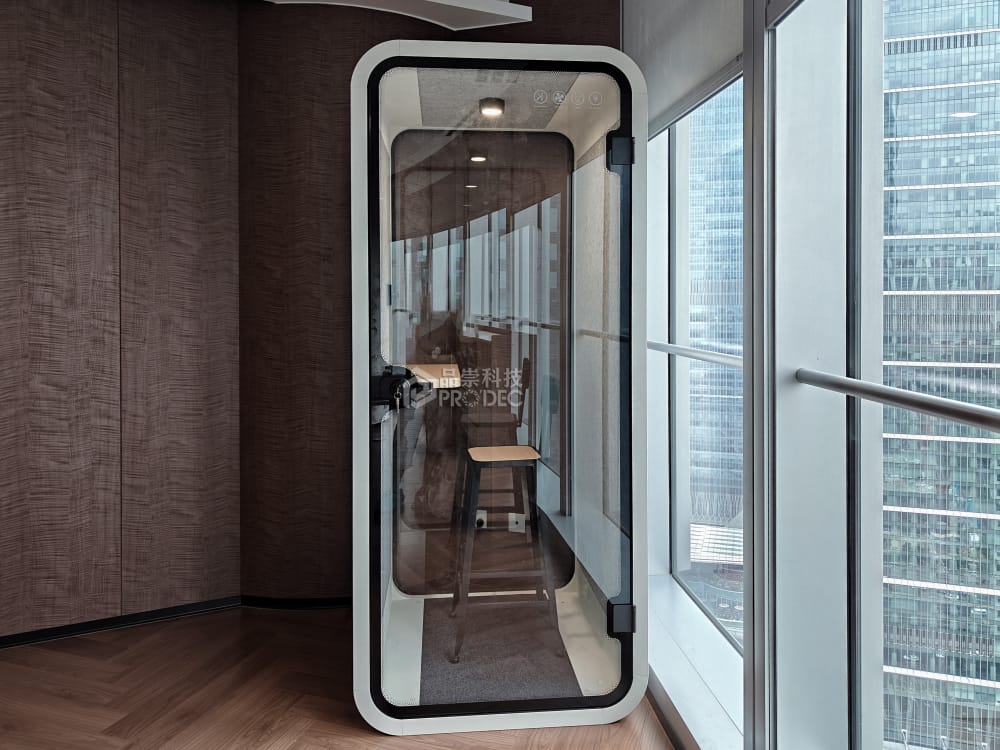

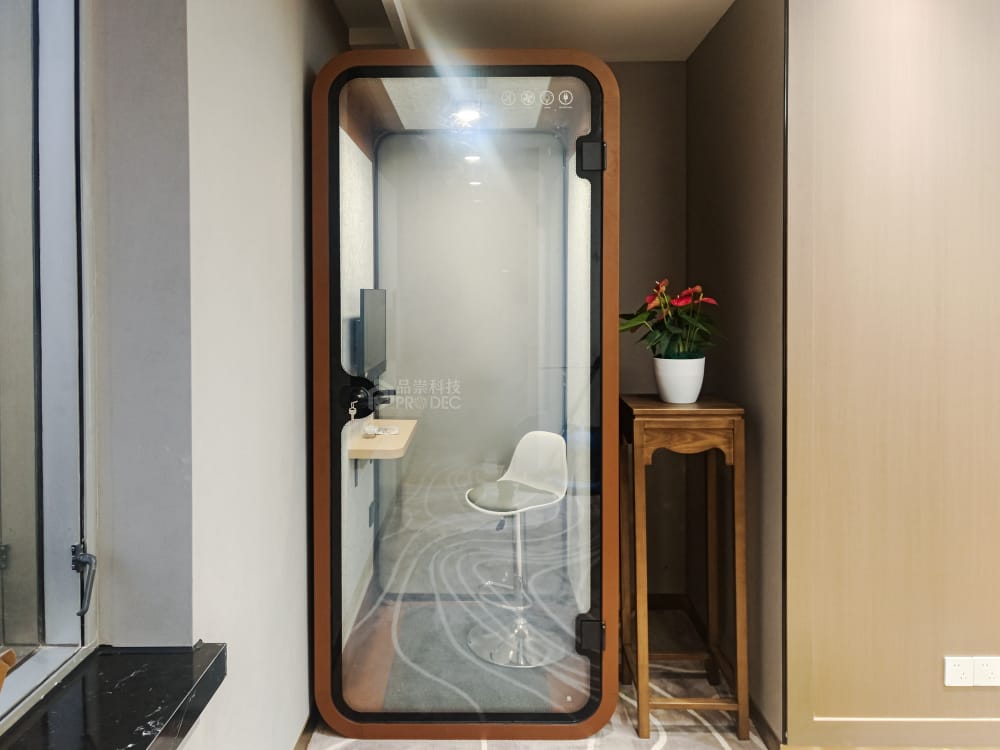

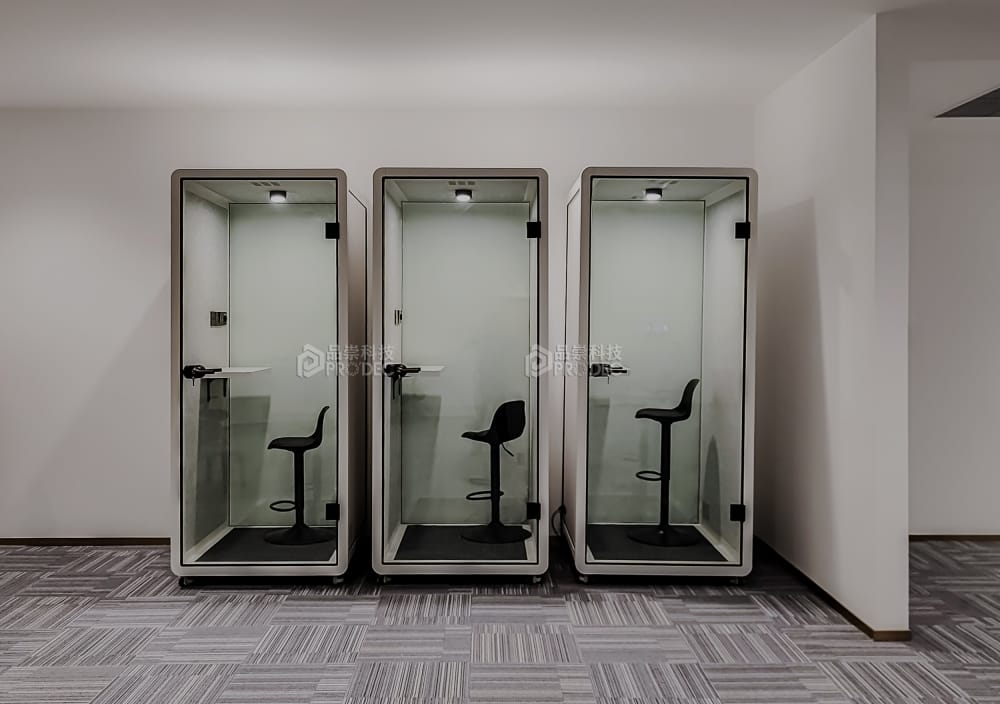

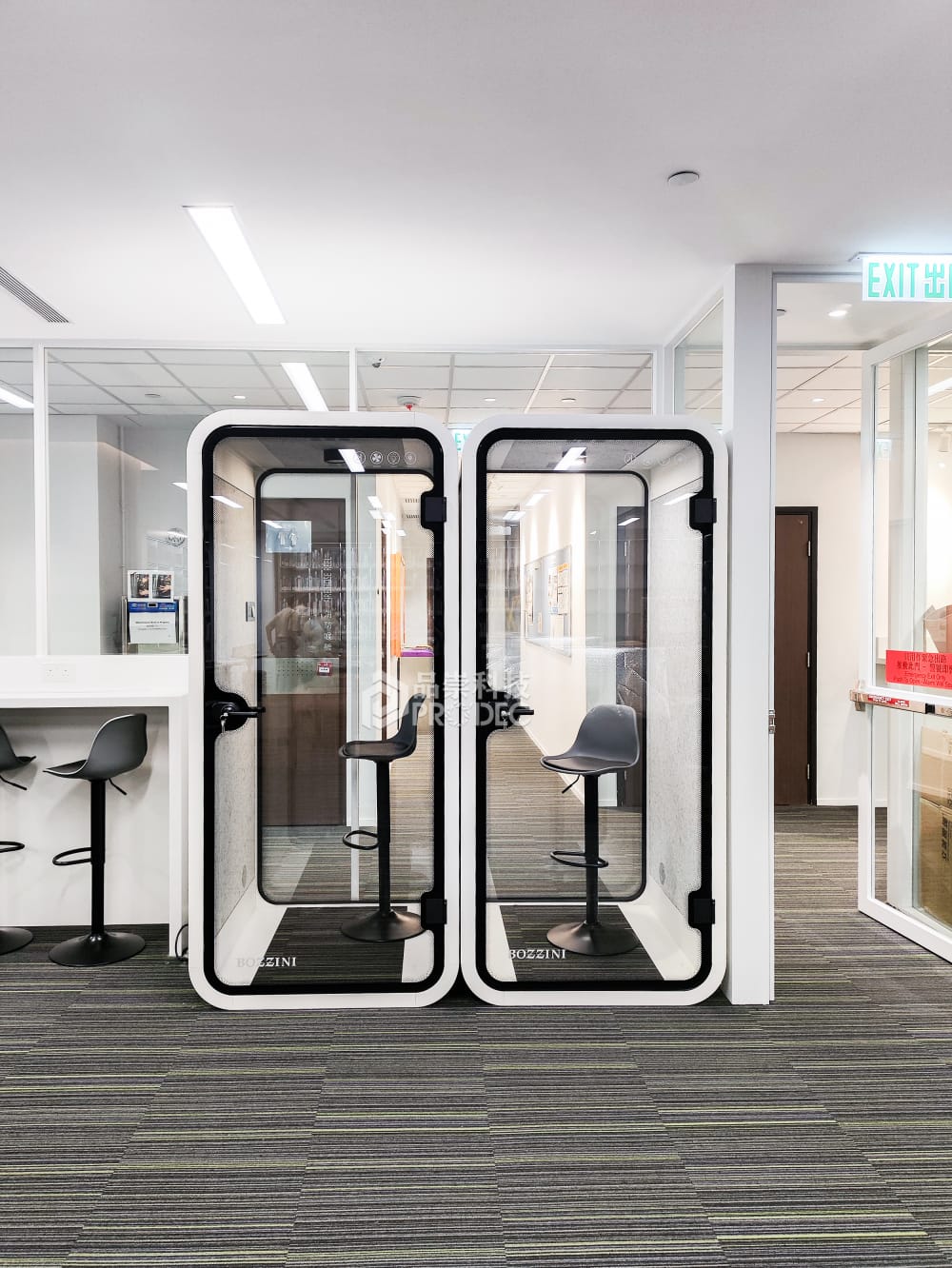

    Small 单人

    办公区域电话亭

    隔音舱配色

    COLOR SELECTION

    新风Ventilation Fan

    多重声障式的设计解决漏音问题的同时,大大降低了新风系统的噪音,减少了舱室内外的声交互,每三分钟便可完全更新一次舱内空气。

    The air in the booth can be circulated in three minutes, to ensure it won't be stuffy in the booth.

    隔声玻璃Sound insulation tempered glass

    隔音舱采用列车式的隔音钢化玻璃,符合隔音要求的同时,满足安装和使用的安全性和稳定性。

    Our booth adopts train type sound insulation tempered glass, which meets the requirements of sound insulation and meets the safety and stability of installation and use.

    尼龙地毯Nylon Carpet

    我们采用定制尺寸的尼龙地毯,每个舱体只需一块地毯满铺。嵌入式的安装方式保证舱内地面的水平,不易滑动。同时,尼龙地毯拥有良好的吸音性能,满足我们对声学设计的要求。

    We use custom-made nylon carpet, which only needs one piece of carpet for a booth. The embedded installation method ensures the level of the booth floor and is not easy to slide. At the same time, nylon carpet has good sound absorption performance, which can meets our requirements for acoustic

    电源220V Power

    适配100-240V/50-60Hz和12VーUSB电源供应系统,符合舱内外主流设备器材和能源环境使用。三控开关分别控制一个照明灯及两个排气扇。

    Our booth is equipped with 12V-USB power supply and power rated
    for100-240V/50-60HZ, complying
    with common equipment
    requirements. The three control
    switches control one lamp and two
    exhaust fans respectively.

    照明Lighting

    舱室4000K自然光色温LED中央照明系统,标配150LX光照满足常态使用需求,专业光照要求舱内预置可扩充电源。

    Equipped with 4000K daylight color temperature LED lighting system150LX), it would satisfy the needs of normal activities.

    In the event of additional power requirements, a backup power supply is readily installed inside the booth.

    隔音Sound Insulation

    隔音舱采用38mm厚的双层铝蜂窝板,铝板表面贴有高密度阻尼隔音毡以达到隔音需求,内饰搭配声学材料以到达声环境的指标。设计值RW+Ctr35dB(±5dB)和RT0.25(±0.1s)

    Our booth is made of 38mm thick double-layer aluminum honeycomb panel. Design value: Rw+Ctr 35db(+5db)and RT0.25s(+0.1s).

    魔术贴装Hook and Loop Fasteners

    魔术贴绑带应用于声学材料背面的安装,环保、无味依据
    《进出口染色纺织品和皮革制品中禁用偶氮染料的检验方法》
    标准进行检测,符合欧洲ROHS标准。稳固、快捷的安装便于后期的循环利用。

    Magic tape band is used for the back side installation of acoustic materials. It is environmentally
    friendly and odourless, comply with European ROHS standard

    模块化拼接,3小时快速安装

    Modular splicing, quick installation in 3 hours
